Overview and Application

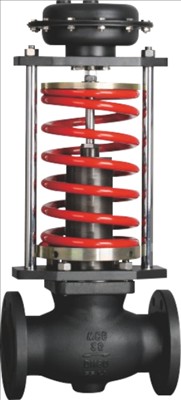

The self-operated pressure regulating valve consists of a control valve, an actuator and a spring that sets the pressure. Suitable for non-corrosive liquids, gases and vapors. Pressure control in the system pipeline before the valve (when the pressure in front of the valve rises, the control valve opens) or after the valve (when the pressure behind the valve rises, the control valve closes). Widely used in petroleum, chemical industry, electric power, metallurgy, medicine, food, textile, machinery, etc.
main material
Valve body: carbon steel, stainless steel, alloy steel
Valve trim: stainless steel material, valve core, valve seat can be surfacing STL, ion nitriding treatment
Technical Parameters
Nominal diameter: DN20-DN300 (3/4"-12")
Pressure level: PN16-PN63 (class150-400)
Flow characteristics; quick opening
Leakage level: ASMEB16.104V (metal valve seat)
ASMEB16.104VI soft valve seat)
Valve cover form: Standard type: -30℃~260℃
Medium temperature type: -30℃-350℃
Connection method: flange type, welding type
executive agency
@Thin film actuator (self-contained), piston actuator (self-contained).
