1. Overview and Application

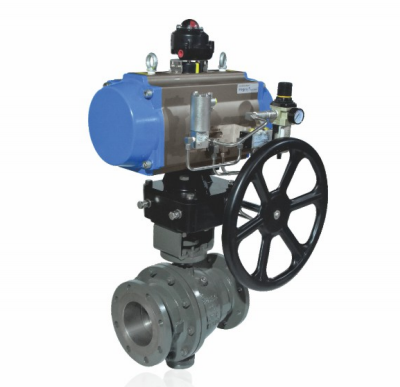

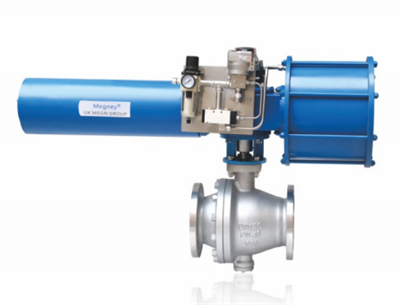

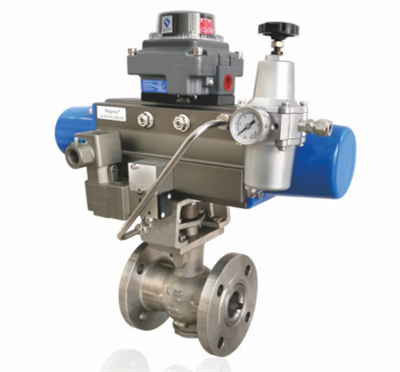

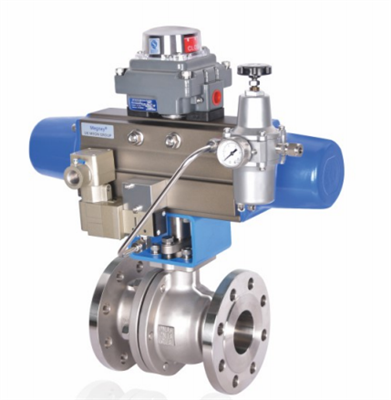

Pneumatic soft seal floating ball valve has a simple structure. The ball is a floating structure and relies on the single force of the medium acting on the ball to make the ball move closer to the valve seat on one side.
The sealing function is achieved by squeezing the valve seat and is mainly used in low-pressure shutoff situations. This series of valves are ideal products for use as pipeline switches. It has the characteristics of compact
structure, light weight, high circulation capacity, strong cutting performance and long service life. Currently it is the best choice for steam, hydrocarbon, and corrosive media conditions.
2. Main materials
Valve body: carbon steel, stainless steel, alloy steel, duplex steel, etc.
Valve core: stainless steel, duplex steel, etc.
Valve seat: soft seal: PTFE, R-PTFE, PPL, PEEK, etc.
Metal seal spraying: STL WC Ni60 Cr3C2, etc.
3. Technical parameters
Nominal diameter: DN15-DN200
Pressure level: PN16-PN100
Working temperature: -40℃—450℃
Connection method: flange, thread, welding
Sealing form: soft seal, metal seal
4. Product features
1. The actuator connection adopts the SO5211 international standard;
2. Full-bore structure and locking device design;
3. Strong circulation capacity, small flow resistance, and two-way sealing;
4. The valve stem has an anti-fly-out structure, fireproof and anti-static design;
