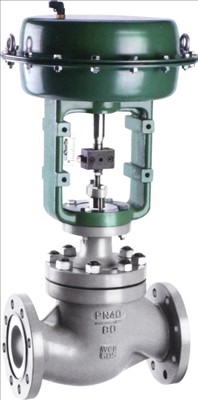

Pneumatic single seat regulating valve

Pneumatic single seat regulating valve

Brief description: The single-seat valve structure is adopted, and the "corrosion-resistant king"

polytetraethylene material is embedded in the valve body cavity, ensuring that the parts in

contact with the medium are all polytetraethylene material. It has the advantages of good

corrosion resistance, small size, light weight, smooth movement, and reliability. It is widely

used in various highly corrosive media situations (such as hydrochloric acid, nitrogen, sulfuric acid, etc.)

in petroleum, chemical, metallurgy, pharmaceutical and other industries.


Diameter: DN15-DN300 Pressure: PN16-PN25 Temperature: -30-180 Material: carbon steel,

stainless steel + F46 Product model: BL Manufacturer nature: Manufacturer


Related Products

Overview and Application:


The single-seat valve structure is adopted, and the "corrosion-resistant king" polytetraethylene material is embedded in the valve body cavity, ensuring that the parts in contact with the medium are all polytetraethylene material. It has the advantages of good corrosion resistance, small size, light weight, smooth movement, and reliability. It is widely used in various highly corrosive media situations (such as hydrochloric acid, nitrogen, sulfuric acid, etc.) in petroleum, chemical, metallurgy, pharmaceutical and other industries.


main material

Valve body: carbon steel+F46, stainless steel+F46

Valve trim: stainless steel + F46



Technical Parameters:

Nominal diameter: DN15-DN300 (1/2"-12")

Pressure level: PN16-PN25 (class150)

Flow characteristics: equal percentage, linear, quick opening

Leakage level: ASME B16.104VI (soft seat)

Valve cover form; standard type; -30℃-+180℃

Bellows type: -30℃-+180℃

Connection method: flange type



Execution agency:

(Pneumatic diaphragm actuator, pneumatic piston actuator, electric actuator, electro-hydraulic actuator)
