Overview and Application

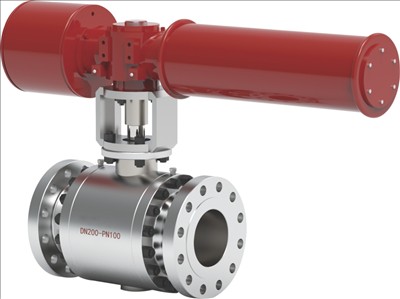

The surface of the valve seat of the pneumatic hard-sealing ball valve is hardened. The ball is spray-coated/spray-welded with carbide, and the sealing seat is spring-loaded. The scraper structure has excellent sealing performance within a wide range of temperature and pressure changes, ensuring stable operation under high temperature and high pressure conditions. This series of valves is mainly suitable for severe working conditions. It can meet severe working conditions such as high temperature, high pressure, wear resistance, strong corrosion and granular media.
main material
Valve body: carbon steel, stainless steel, alloy steel, duplex steel, etc.
Valve core: stainless steel, duplex steel, etc.
Valve seat: soft seal: PTFE, R-PTFE, PPL, PEEK, etc.
Metal seal: STL, WC, Ni60, Cr3C2
Technical Parameters
Nominal diameter: DN15-DN1200 (1/2”-48”)
Pressure level: PN16-PN420 (Class 150-2500)
Working temperature: -40℃~550℃
Connection method: flange, welding
Sealing form: soft seal, metal seal
Features
Fireproof design with anti-static device;
Full diameter design, strong flow capacity and small flow resistance;
The valve cavity automatically releases pressure and has good safety protection performance;
A variety of structural forms to choose from.
