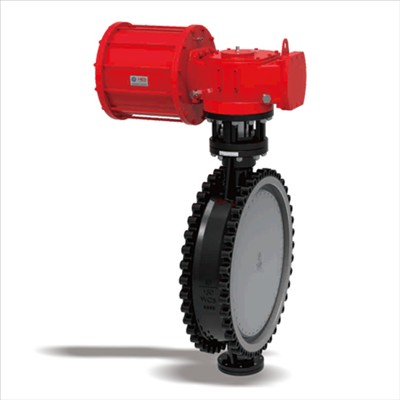

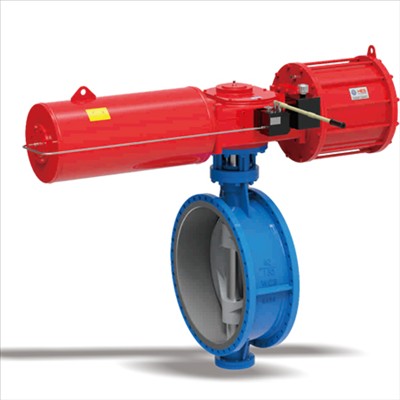

Pneumatic butterfly valve (HG double acting)

Pneumatic butterfly valve (HG double acting)

Brief description: The customer's inquiry form can be directly dialed to the marketing

department at 4009989163, or sent to the corporate email to discuss in detail: delivery

date, tax-inclusive shipping, payment method and special requirements, etc. The customer

provides: working pressure, temperature, medium, connection method and other detailed parameters

Diameter: DN100~DN2000mm Pressure: 0.25-1.6Mpa Temperature: -40℃-450℃

Material: Carbon Steel Stainless Steel Product Model: BL Manufacturer: American Brown

Related Products

Model: Various pneumatic butterfly valves,

Caliber: DN100 to 2000 mm

Pressure: 0.25, 0.6, 1.0, 1.6, (MPa)

Size standards: national standard, American standard, Japanese standard,

Valve body material: carbon steel (WCB), stainless steel (CF8, CF8M)

Valve seat material: polytetrafluoroethylene (F), counterpolymer (P), carbide (H, Y)

Mode of action: double acting, single acting (spring return)

Control mode: two-position cut-off (switch type), adjustable type

Accessory selection: solenoid valve, positioner, limit switch, air source treatment triplet, manual mechanism
